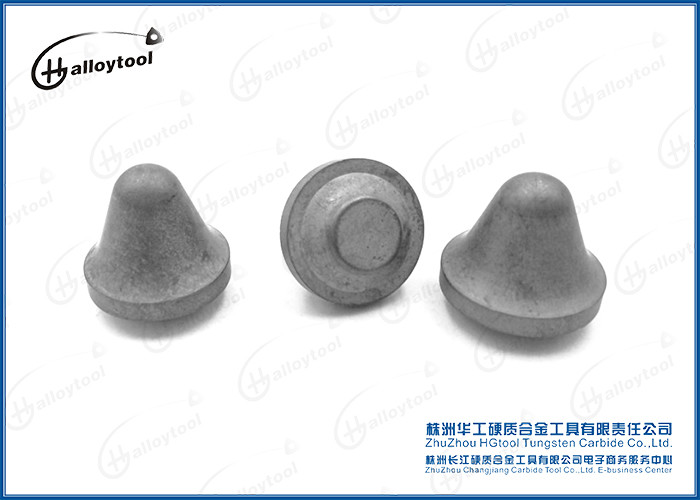

Machinery Wear Resistance Tungsten Carbide Soild Mining Button Inserts ZS10

Name: Machinery Wear Resistance Tungsten Carbide Soild Mining Button Inserts ZS10
Brand: HGalloytool
Price: 1 USD

Brand Name : HGalloytool

Model Number : Customized

Certification : ISO9001:2008; GB/T19001-2008

Place of Origin : Hunan, China (Mainland)

MOQ : 5 kg

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 kilogram per month

Delivery Time : 20~30 days

Packaging Details : Plastic Boxes, or Paper Cartons

Commodity Name : Tungsten Carbide Products

Material : 100% Vrigin Tungsten carbide

Application : Mining tips

Size : Customized

Grade : ZS10 YG3 YL10.2 etc.

Usage : Carbide Mining Tools

Color : Gray

Advantage : Excellent wear resistance

Contact Now

Heavy Tungsten Carbide Soild Drilling Bits for Gravity

Mining ZS30

Advantages of our tungsten carbide products:

1. Made from 100% origin raw material.
2. Producted by advanced equipments and perfect workmanship.
3. Best quality and reasonable price.
4. Products can be customized according to requirements.
5. All product go through in-process and final inspection.
6. High weight and deep mining depth.

Applications Recommended:

ZS10: It has high strength and good toughness, but wear-resistance is a little bit poor. This grade is suitable for crushing hard sandstone with a diameter less than 50mm, quartzite, pyknotic silicide dolomite, silicide quartzite, iron ore, diorite, granite, basalt stones, pebbles, etc.
YG3: qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles.
YL10.2: Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.

The performance and recommendation of the hard alloy plate number of underground

mining tools:

Grade	Hardness HRA	TRS N/mm²	Density g/cm³	Recommended Applications
YK06	90	2200	14.9	It is mainly used for medium or small hard alloy ball teeth, inlay and make the roller bit and impact drill, or drill in soft and medium rock bed.
JK05	89.5	2400	14.8
JK10	89	2200	14.4	It can be used for geological exploration and drilling tools, shearer with conical teeth, or as soft rock bed, coal seam and non-silicified rock drilling tools.
YG8C	88.5	2500	14.7
YG9C	87.5	2600	14.5
YG11C	87	2600	14.4	It is suitable for drilling tools such as drilling brazing chip for mining in mines, and drill tools with alloy column teeth with roller bit. It also can be used to drill in medium and hard rock bed.
YK20	86.5	2600	14.4
YK25	87	2600	14.4
YG13C	86	2800	14.2	It is suitable for tungsten carbide alloy coal cutting teeth, turning teeth and tunneling teeth, and it can be used to drill in medium and hard rock bed.
YK30	86.5	2800	14.35
YK40	86	2800	14.35
YG11CN	88	2500	14.4	It has high hardness and wear resistance, which is suitable for snow-shoveling blade.
ZS10	87	2800	14.35	It has high strength and good toughness, but wear-resistance is a little bit poor. This grade is suitable for crushing hard sandstone with a diameter less than 50mm, quartzite, pyknotic silicide dolomite, silicide quartzite, iron ore, diorite, granite, basalt stones, pebbles, etc.
ZS20	88	2600	14.45	Its hardness and wear-resistance are normal, which is suitable for crushing metamorphic sandstone with a diameter less than 45mm, granite porphyry, granite, common limestone, open-pit granite, dolomite, magnetite, etc.
ZS30	89	2500	14.6	This grade has high hardness and good wear-resistance, which is suitable for crushing medium or hard granite with diameter less than 40mm, hornite, siliceous slate, copper pyrite, marble, sandstone, etc.
ZS40	90	2400	14.7	It has high strength and good wear-resistance, which is suitable for crushing limestone with diameter less than 40mm, sandstone, sandy shale, poor iron ore, silicified clay sandstone, etc.
