Tungsten Carbide Button Bits / Cemented Carbide Tips For Mining Tools Or Oil Field Drilling

Name: Tungsten Carbide Button Bits Cemented Carbide Tips For Mining Tools Or Oil Field Drilling
Brand: HGalloytool
Price: 1 USD

Brand Name : HGalloytool

Model Number : Customized

Certification : ISO9001:2008; GB/T19001-2008

Place of Origin : Hunan, China (Mainland)

MOQ : 5 kg

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Kilogram/Kilograms per Month

Delivery Time : 20~30 days once confirmed the order

Packaging Details : Plastic Boxes, or Paper Cartons

Commodity Name : Tungsten Carbide Products

Material : 100% pure raw material

Application : Mining Tools or Oil Field Drilling

Size : Customized size

Grade : K10 K20 K30 etc.

Usage : Stone Carving

Color : Gray

Advantage : Great wear resistance

Type : Oil drill bits

Contact Now

Tungsten Carbide Button Bits/Cemented Carbide Tips for

Mining Tools or Oil Field Drilling

Advantages of our tungsten carbide products:

1. Made from 100% origin raw material.
2. Producted by advanced equipments and perfect workmanship.
3. Best quality and reasonable price.
4. Products can be customized according to requirements.
5. All product go through in-process and final inspection.

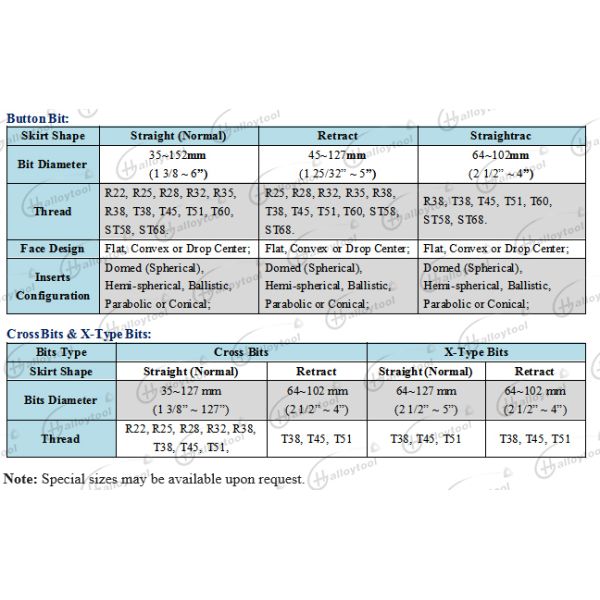

Specification overview:

Tungsten Carbide Button Bits / Cemented Carbide Tips For Mining Tools Or Oil Field Drilling

The performance and recommendation of the hard alloy plate number of underground

mining tools:

Grade	Hardness HRA	TRS N/mm²	Density g/cm³	Recommended Applications
YK06	90	2200	14.9	It is mainly used for medium or small hard alloy ball teeth, inlay and make the roller bit and impact drill, or drill in soft and medium rock bed.
JK05	89.5	2400	14.8
JK10	89	2200	14.4	It can be used for geological exploration and drilling tools, shearer with conical teeth, or as soft rock bed, coal seam and non-silicified rock drilling tools.
YG8C	88.5	2500	14.7
YG9C	87.5	2600	14.5
YG11C	87	2600	14.4	It is suitable for drilling tools such as drilling brazing chip for mining in mines, and drill tools with alloy column teeth with roller bit. It also can be used to drill in medium and hard rock bed.
YK20	86.5	2600	14.4
YK25	87	2600	14.4
YG13C	86	2800	14.2	It is suitable for tungsten carbide alloy coal cutting teeth, turning teeth and tunneling teeth, and it can be used to drill in medium and hard rock bed.
YK30	86.5	2800	14.35
YK40	86	2800	14.35
YG11CN	88	2500	14.4	It has high hardness and wear resistance, which is suitable for snow-shoveling blade.
ZS10	87	2800	14.35	It has high strength and good toughness, but wear-resistance is a little bit poor. This grade is suitable for crushing hard sandstone with a diameter less than 50mm, quartzite, pyknotic silicide dolomite, silicide quartzite, iron ore, diorite, granite, basalt stones, pebbles, etc.
ZS20	88	2600	14.45	Its hardness and wear-resistance are normal, which is suitable for crushing metamorphic sandstone with a diameter less than 45mm, granite porphyry, granite, common limestone, open-pit granite, dolomite, magnetite, etc.
ZS30	89	2500	14.6	This grade has high hardness and good wear-resistance, which is suitable for crushing medium or hard granite with diameter less than 40mm, hornite, siliceous slate, copper pyrite, marble, sandstone, etc.
ZS40	90	2400	14.7	It has high strength and good wear-resistance, which is suitable for crushing limestone with diameter less than 40mm, sandstone, sandy shale, poor iron ore, silicified clay sandstone, etc.

Tungsten Carbide Button Bits / Cemented Carbide Tips For Mining Tools Or Oil Field Drilling
